B-TEC 200amp / 12V LiFePO4 Slim Metal Case power Battery

The Slimline features a built-in reset port with a remote switch connection, allowing you to restart a flat battery without accessing terminals. Just press the remote button to reactivate and begin charging.

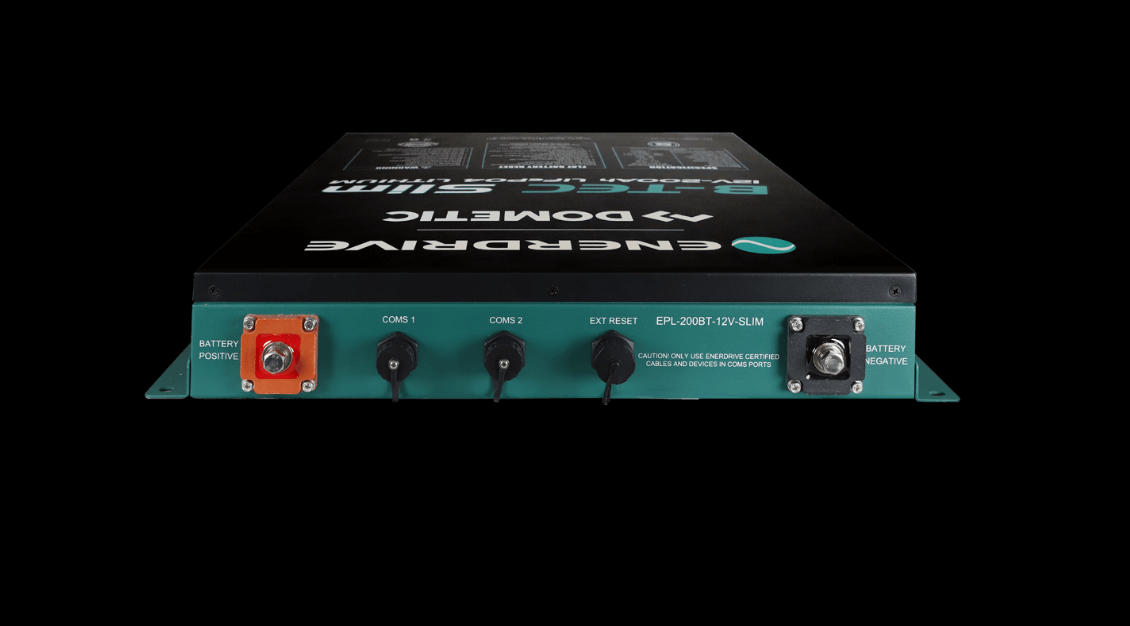

With a compact design (530W x 600H x 83D mm), all connection points—including comms and reset ports—are located at one end. The external reset button improves water resistance (IP52 rated) and ease of access. Sealed fittings and overlapping frames further reduce water ingress risks.

Two RJ45 comms ports with CAN output are included for future system integration.

Specifications:

• Voltage: 12.8V
• Capacity: 200Ah
• Cycle Life: ≥ 2000 cycles @ 80% DOD
• Weight: ~30kg
• Case: Powder-coated zinc-plated steel
• Max Charge Current: 150A (25°C, 30 min)
• Recommended: 60–120A
• Storage Temp: -20°C to 60°C
• Self-discharge: ≤ 3%/month

Wireless Monitoring

Using the Enerdrive B-TEC app, track:

• Capacity, Voltage, Current
• SOC, SOH, Cycles
• Temperature, Cell Voltage
• Battery Status, Alarms & Event Logs

Integrated Battery Management System

The internal BMS protects against:

• Overcharge/discharge
• Over-temperature
• Short circuits

Max inverter capacity: 3000W. Exceeding this can damage the BMS.

Important Notes:

• Indoor use only – not weatherproof
• Compatible with lithium profile chargers
